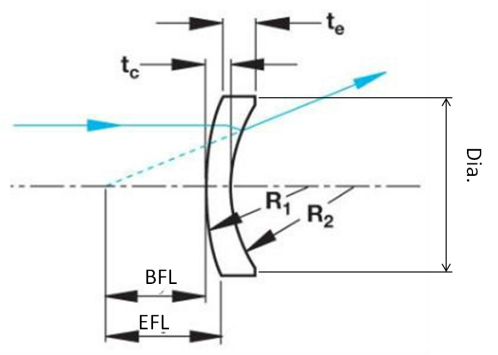

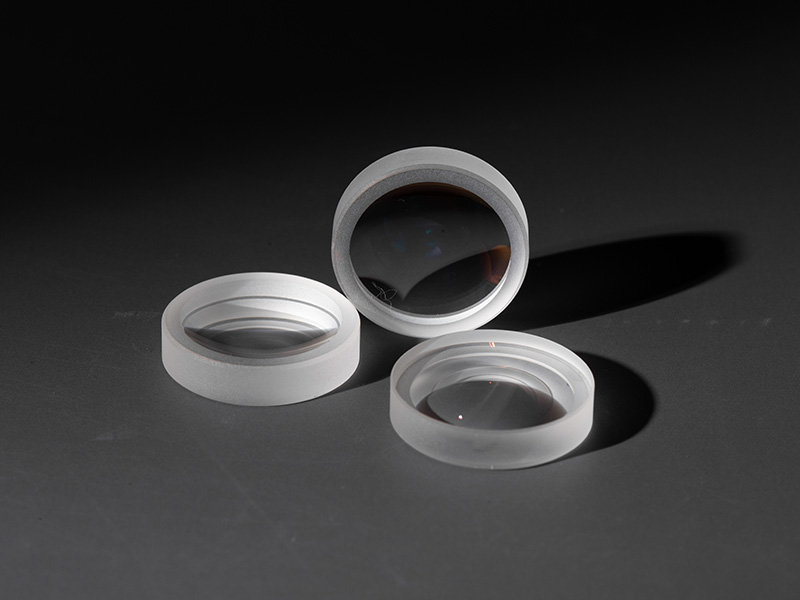

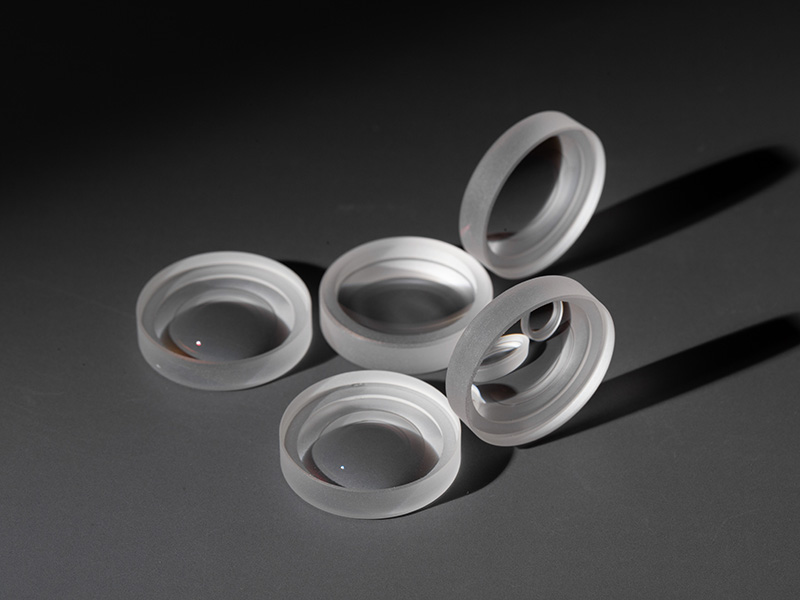

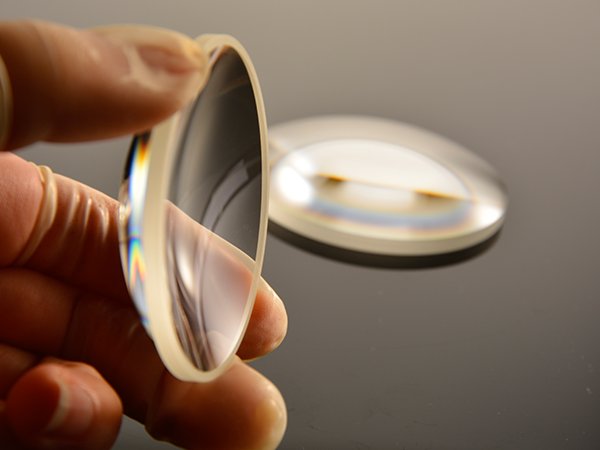

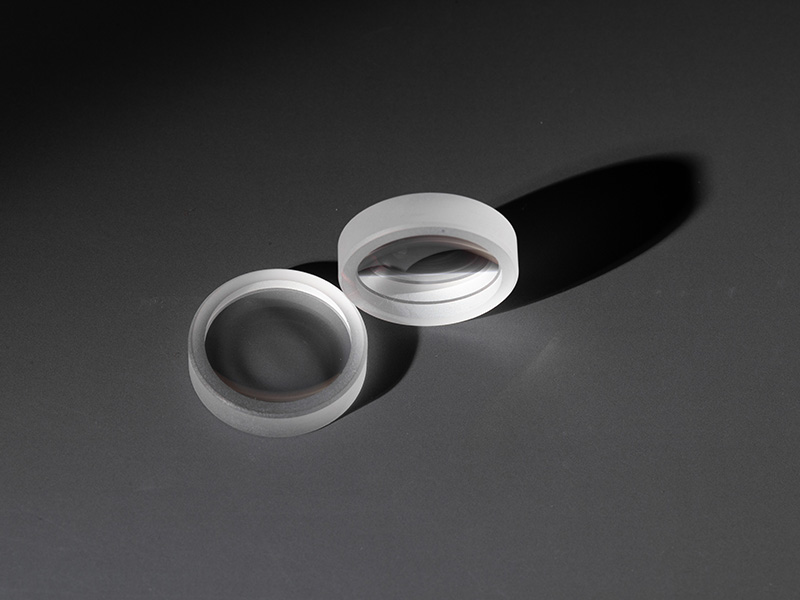

彎月透鏡的定義由兩個曲率半徑較小，數值相差也很少的球面構成的新月形透鏡。
彎月透鏡的焦距可正可負。
彎月透鏡可以矯正相差通常用作矯正鏡片，還可以作為照明系統的聚光器，并且選擇合適厚度還可以有消除色差的作用。
常規產品規格如下表，我們也可以為客戶定做各種規格的雙凸透鏡。
常規產品規格
| 彎月透鏡（尺寸及鍍膜可按用戶需求定制）單位mm | |||||
| 序號 | 品號 | 焦距 | 外徑 | 中心厚度 | 材料 |
| 1 | ML-001 | -1211.69 | 38.0 | 3.5 (±0.05) | H-ZF6 |
| 2 | ML-002 | -765.77 | 55.0 | 13.0 (±0.05) | ZF6 |
| 3 | ML-003 | -290.33 | 16.5 | 2.65 (±0.03) | N-SK16 |
| 4 | ML-004 | -235.31 | 42.0 | 7.5 (±0.1) | ZF3 |
| 5 | ML-005 | -227.52 | 46.0 | 4.0 (±0.1) | H-ZF2 |
| 6 | ML-006 | -223.50 | 20.0 | 1.6 (±0.05) | ZF3 |
| 7 | ML-007 | -203.92 | 66.0 | 3.03 (±0.03) | SF4 |
| 8 | ML-008 | -202.25 | 21.0 | 2.5 (±0.05) | H-ZF3 |
| 9 | ML-009 | -199.30 | 44.0 | 3.8 (±0.1) | ZF10 |
| 10 | ML-010 | -186.57 | 19.0 | 2.5 (±0.1) | H-F1 |
| 11 | ML-011 | -173.60 | 14.0 | 2.0 (±0.05) | ZF1 |
| 12 | ML-012 | -161.20 | 14.4 | 2.0 (±0.03) | ZF1 |
| 13 | ML-013 | -144.77 | 30.0 | 5.6 (±0.05) | K9 |
| 14 | ML-014 | -131.29 | 24.0 | 1.6 (±0.05) | ZF2 |
| 15 | ML-015 | -129.48 | 31.0 | 3.24 (±0.05) | H-F4 |
| 16 | ML-016 | -126.70 | 24.0 | 10.1 (±0.05) | ZK3 |
| 17 | ML-017 | -122.33 | 40.0 | 2.0 (±0.1) | ZF7 |
| 18 | ML-018 | -121.99 | 17.5 | 2.0 (±0.04) | ZF1 |
| 19 | ML-019 | -120.56 | 46.0 | 3.0 (±0.04) | ZF7 |
| 20 | ML-020 | -118.81 | 32.0 | 3.5 (±0.1) | ZF2 |
| 21 | ML-021 | -102.11 | 9.0 | 1.5 (±0.1) | ZF1 |
| 22 | ML-022 | -102.03 | 13.0 | 2.0 (±0.05) | K9 |
| 23 | ML-023 | -98.47 | 17.0 | 2.0 (±0.1) | F1 |
| 24 | ML-024 | -94.22 | 23.0 | 2.5 (±0.05) | F4 |
| 25 | ML-025 | -93.97 | 24.0 | 1.6 (±0.04) | H-ZF7LA |
| 26 | ML-026 | -92.12 | 15.0 | 1.0 (±0.03) | ZF7 |
| 27 | ML-027 | -87.36 | 35.0 | 2.65 (±0.1) | H-ZF2 |
| 28 | ML-028 | -78.50 | 10.5 | 2.6 (±0.05) | F2 |
| 29 | ML-029 | -77.80 | 13.6 | 2.5 (±0.03) | ZF1 |
| 30 | ML-030 | -76.63 | 15.5 | 1.4 (+0.04/-0.06) | F6 |
| 31 | ML-031 | -73.72 | 25.0 | 1.7 (±0.03) | N-SF6 |
| 32 | ML-032 | -65.29 | 14.0 | 2.0 (±0.05) | ZF2 |
| 33 | ML-033 | -64.83 | 26.0 | 2.0 (±0.05) | H-LaF4 |
| 34 | ML-034 | -63.76 | 21.0 | 2.0 (±0.05) | LaF4 |
| 35 | ML-035 | -63.28 | 23.0 | 2.4 (±0.04) | ZF2 |
| 36 | ML-036 | -63.07 | 12.0 | 1.5 (±0.1) | F2 |
| 37 | ML-037 | -61.45 | 15.0 | 1.5 (±0.03) | F7 |
| 38 | ML-038 | -60.65 | 18.0 | 8.5 (±0.05) | K9 |
| 39 | ML-039 | -60.65 | 16.5 | 1.5 (±0.03) | SF4 |
| 40 | ML-040 | -59.94 | 16.0 | 1.5 (±0.03) | ZF1 |
| 41 | ML-041 | -57.87 | 16.0 | 1.5 (±0.05) | LaF4 |
| 42 | ML-042 | -56.90 | 13.6 | 1.8 (±0.03) | ZF1 |
| 43 | ML-043 | -56.38 | 16.2 | 1.5 (±0.05) | F7 |
| 44 | ML-044 | -56.08 | 15.4 | 1.5 (±0.05) | F3 |
| 45 | ML-045 | -55.67 | 30.0 | 2.5 (±0.05) | H-ZF11 |
| 46 | ML-046 | -54.44 | 22.5 | 2.5 (±0.1) | H-ZF2 |
| 47 | ML-047 | -53.69 | 16.0 | 1.5 (±0.03) | N-BASF2 |
| 48 | ML-048 | -53.60 | 14.4 | 2 (±0.03) | F5 |
| 49 | ML-049 | -49.85 | 16.0 | 1.5 (±0.03) | N-BASF2 |
| 50 | ML-050 | -46.89 | 15.0 | 1.3 (±0.05) | F4 |
| 51 | ML-051 | -45.75 | 7.0 | 1.0 (±0.05) | K9 |
| 52 | ML-052 | -45.57 | 23.0 | 2.0 (±0.05) | ZF3 |
| 53 | ML-053 | -45.57 | 21.4 | 2.0 (±0.10) | ZF3 |
| 54 | ML-054 | -45.40 | 13.0 | 1.0 (±0.05) | BAF7 |
| 55 | ML-055 | -44.59 | 18.0 | 1.7 (±0.05) | F4 |
| 56 | ML-056 | -44.16 | 14.2 | 2.0 (±0.05) | ZF1 |
| 57 | ML-057 | -43.43 | 13.0 | 1.0 (±0.04) | ZF1 |
| 58 | ML-058 | -43.08 | 22.0 | 3.0 (±0.05) | ZF6 |
| 59 | ML-059 | -42.33 | 13.0 | 1.0 (±0.05) | ZF1 |
| 60 | ML-060 | -41.04 | 13.0 | 1.0 (±0.03) | ZF1 |
| 61 | ML-061 | -40.80 | 6.0 | 1.0 (±0.05) | ZF2 |
| 62 | ML-062 | -40.60 | 11.0 | 1.5 (±0.05) | ZF2 |
| 63 | ML-063 | -40.18 | 48.0 | 3.0 (±0.03) | S-TIH53 |
| 64 | ML-064 | -38.54 | 6.0 | 1.0 (±0.2) | ZF2 |
| 65 | ML-065 | -37.75 | 5.0 | 1.88 (±0.05) | H-K9L |
| 66 | ML-066 | -37.62 | 25.0 | 2.0 (±0.04) | H-ZF13 |
| 67 | ML-067 | -37.43 | 12.0 | 2.0 (±0.1) | ZF1 |
| 68 | ML-068 | -36.95 | 20.0 | 2.0 (±0.1) | ZF1 |
| 69 | ML-069 | -36.07 | 16.4 | 2.2 (±0.08) | S-TIH6 |
| 70 | ML-070 | -33.78 | 13.0 | 2.0 (±0.05) | LAF4 |
| 71 | ML-071 | -32.56 | 31.6 | 3.0 (±0.03) | S-BSM81 |
| 72 | ML-072 | -32.55 | 12.0 | 2.0 (±0.1) | ZF1 |
| 73 | ML-073 | -31.96 | 6.0 | 1.0 (±0.1) | ZF2 |
| 74 | ML-074 | -31.96 | 6.0 | 1.0 (±0.05) | ZF2 |
| 75 | ML-075 | -31.16 | 25.0 | 2.2 (±0.03) | N-SF6 |
| 76 | ML-076 | -31.14 | 9.0 | 1.3 (±0.1) | F4 |
| 77 | ML-077 | -30.74 | 18.0 | 2.1 (±0.05) | H-ZF10 |
| 78 | ML-078 | -30.32 | 20.0 | 1.5 (±0.15) | ZF3 |
| 79 | ML-079 | -29.36 | 10.0 | 1.3 (±0.1) | ZF1 |
| 80 | ML-080 | -27.80 | 11.0 | 1.2 (±0.02) | ZF6 |
| 81 | ML-081 | -26.83 | 9.0 | 1.2 (±0.04) | ZF4 |
| 82 | ML-082 | -26.04 | 8.0 | 2.0 (±0.1) | H-F4 |
| 83 | ML-083 | -25.37 | 12.0 | 1.1 (±0.05) | K2 |
| 84 | ML-084 | -25.23 | 6.0 | 1.0 (±0.2) | ZF2 |
| 85 | ML-085 | -24.54 | 9.0 | 1.5 (±0.02) | ZF6 |
| 86 | ML-086 | -23.89 | 16.0 | 1.5 (±0.05) | ZF1 |
| 87 | ML-087 | -22.92 | 16.0 | 1.0 (±0.05) | ZF1 |
| 88 | ML-088 | -22.76 | 9.0 | 0.9 (±0.1) | F3 |
| 89 | ML-089 | -22.37 | 14.0 | 3.0 (0/-0.1) | BAK4 |
| 90 | ML-090 | -21.69 | 9.0 | 0.95 (±0.05) | ZF2 |
| 91 | ML-091 | -21.20 | 3.5 | 0.9 (±0.02) | H-ZF1 |
| 92 | ML-092 | -20.98 | 11.0 | 0.8 (±0.05) | ZF3 |
| 93 | ML-093 | -20.62 | 9.4 | 1.2 (±0.02) | ZF6 |
| 94 | ML-094 | -19.74 | 9.0 | 0.9 (±0.1) | F3 |
| 95 | ML-095 | -18.84 | 8.5 | 1.07 (±0.02) | ZBAF21 |
| 96 | ML-096 | -18.76 | 7.0 | 1.0 (±0.1) | F5 |
| 97 | ML-097 | -18.55 | 7.0 | 1.2 (±0.1) | ZF1 |
| 98 | ML-098 | -17.66 | 8.0 | 1.0 (±0.05) | F4 |
| 99 | ML-099 | -17.55 | 8.0 | 1.5 (±0.1) | ZF2 |
| 100 | ML-100 | -17.23 | 9.0 | 5.0 (±0.05) | H-ZF4 |
| 101 | ML-101 | -17.06 | 8.0 | 1.0 (±0.05) | ZF6 |
| 102 | ML-102 | -16.94 | 9.0 | 0.85 (±0.05) | ZF2 |
| 103 | ML-103 | -16.37 | 9.0 | 0.9 (±0.05) | ZF2 |
| 104 | ML-104 | -16.17 | 7.5 | 1.5 (±0.1) | F4 |
| 105 | ML-105 | -15.23 | 8.0 | 0.8 (+0.05/-0.15) | ZF2 |
| 106 | ML-106 | -15.08 | 7.5 | 1.0 (±0.02) | ZF7 |
| 107 | ML-107 | -14.75 | 6.0 | 1.0 (±0.1) | ZF2 |
| 108 | ML-108 | -14.75 | 6.0 | 1.0 (±0.05) | BaF8 |
| 109 | ML-109 | -14.22 | 9.0 | 0.85 (±0.05) | ZF2 |
| 110 | ML-110 | -13.99 | 9.0 | 0.84 (±0.05) | ZF2 |
| 111 | ML-111 | -13.50 | 9.0 | 0.81 (±0.05) | ZF2 |
| 112 | ML-112 | -13.23 | 6.0 | 1.0 (±0.05) | ZF5 |
| 113 | ML-113 | -12.51 | 9.0 | 1.0 (±0.05) | ZF7 |
| 114 | ML-114 | -10.96 | 5.5 | 1.0 (±0.1) | BaF4 |
| 115 | ML-115 | -9.63 | 9.0 | 1.8 (±0.1) | ZF6 |
| 116 | ML-116 | -8.77 | 6.0 | 0.8 (±0.05) | ZF6 |
| 117 | ML-117 | 8.06 | 7.2 | 5.0 (±0.1) | ZF6 |
| 118 | ML-118 | 8.50 | 9.0 | 3.5 (±0.05) | H-ZK9 |
| 119 | ML-119 | 12.40 | 9.0 | 2.4 (±0.05) | ZK7 |
| 120 | ML-120 | 14.07 | 9.0 | 2.0 (±0.05) | LaK7 |
| 121 | ML-121 | 16.26 | 10.0 | 5.4 (±0.03) | S-TIH23 |
| 122 | ML-122 | 18.16 | 15.5 | 6.2 (±0.05) | S-LAL18 |
| 123 | ML-123 | 19.33 | 9.0 | 1.0 (±0.1) | ZF1 |
| 124 | ML-124 | 20.84 | 8.0 | 2.0 (±0.03) | ZF6 |
| 125 | ML-125 | 21.10 | 13.5 | 2.5 (±0.05) | H-LAK53 |
| 126 | ML-126 | 21.23 | 17.6 | 5.2 (±0.1) | ZF6 |
| 127 | ML-127 | 21.80 | 18.0 | 1.6 (±0.05) | ZF1 |
| 128 | ML-128 | 21.80 | 15.8 | 1.0 (±0.05) | ZF1 |
| 129 | ML-129 | 21.98 | 14.0 | 2.2 (±0.03) | SF6HT |
| 130 | ML-130 | 22.14 | 17.0 | 1.6 (±0.05) | K9 |
| 131 | ML-131 | 22.65 | 14.0 | 2.17 (±0.03) | SF6HT |
| 132 | ML-132 | 23.62 | 19.0 | 0.8 (±0.05) | ZF2 |
| 133 | ML-133 | 25.71 | 21.5 | 8.69 (±0.05) | H-LaK51 |
| 134 | ML-134 | 25.91 | 14.0 | 5.4 (±0.03) | S-TIH23 |
| 135 | ML-135 | 26.10 | 6.0 | 1.5 (±0.03) | ZK9 |
| 136 | ML-136 | 26.33 | 9.0 | 2.0 (±0.05) | ZF6 |
| 137 | ML-137 | 26.71 | 18.0 | 4.4 (±0.05) | BaK7 |
| 138 | ML-138 | 27.30 | 9.5 | 2.2 (±0.02) | ZBAF3 |
| 139 | ML-139 | 29.30 | 8.0 | 3 (±0.03) | ZF2 |
| 140 | ML-140 | 29.68 | 15.0 | 3.0 (±0.1) | F4 |
| 141 | ML-141 | 31.70 | 13.6 | 3.44 (±0.03) | K9 |
| 142 | ML-142 | 32.23 | 16.0 | 3.5 (±0.1) | K9 |
| 143 | ML-143 | 34.34 | 23.0 | 3.3 (±0.1) | K9 |
| 144 | ML-144 | 34.36 | 22.0 | 4.2 (±0.15) | S-LAL8 |
| 145 | ML-145 | 34.44 | 14.0 | 2.7 (±0.1) | ZF1 |
| 146 | ML-146 | 35.11 | 17.4 | 5.3 (±0.03) | S-TIH6 |
| 147 | ML-147 | 35.60 | 9.0 | 2.3 (±0.03) | ZF1 |
| 148 | ML-148 | 36.08 | 12.0 | 2.0 (±0.03) | H-ZF52 |
| 149 | ML-0149 | 37.49 | 15.0 | 2.2 (±0.04) | H-ZF7LA |
| 150 | ML-150 | 41.71 | 13.0 | 2.0 (±0.05) | ZF2 |
| 151 | ML-151 | 42.79 | 14.0 | 4.3 (+0.1/0) | ZF13 |
| 152 | ML-152 | 43.75 | 23.0 | 5.0 (±0.05) | BK7 |
| 153 | ML-153 | 43.95 | 16.5 | 2.28 (±0.03) | N-LAF2 |
| 154 | ML-154 | 45.16 | 10.8 | 2.0 (±0.05) | ZF1 |
| 155 | ML-155 | 46.28 | 20.0 | 6.0 (±0.10) | K9 |
| 156 | ML-156 | 47.03 | 14.0 | 2.0 (±0.05) | ZF2 |
| 157 | ML-157 | 49.04 | 18.0 | 3.0 (±0.05) | H-ZF2 |
| 158 | ML-158 | 52.23 | 24.0 | 5.0 (±0.05) | K9 |
| 159 | ML-159 | 54.70 | 48.0 | 11.8 (±0.03) | S-LAL14 |
| 160 | ML-160 | 54.95 | 5.2 | 2.0 (±0.03) | BaF6 |
| 161 | ML-161 | 57.99 | 9.0 | 3.0 (±0.05) | ZF6 |
| 162 | ML-162 | 60.40 | 16.0 | 2.3 (±0.03) | ZF3 |
| 163 | ML-163 | 61.95 | 18.0 | 3.0 (±0.1) | ZF6 |
| 164 | ML-164 | 62.33 | 12.0 | 2.0 (±0.05) | ZF1 |
| 165 | ML-165 | 62.70 | 31.6 | 6.0 (±0.03) | S-TIH14 |
| 166 | ML-166 | 63.05 | 23.0 | 2.4 (±0.1) | ZF2 |
| 167 | ML-167 | 73.55 | 12.0 | 1.5 (±0.1) | ZF3 |
| 168 | ML-168 | 76.75 | 21.0 | 3.0 (±0.05) | BaF6 |
| 169 | ML-169 | 84.90 | 16.0 | 3.0 (±0.05) | ZF11 |
| 170 | ML-170 | 86.96 | 56.0 | 8.8 (±0.03) | S-LAL12 |
| 171 | ML-171 | 98.00 | 14.4 | 3.0 (±0.03) | K9 |
| 172 | ML-172 | 103.21 | 14.2 | 2.0 (±0.1) | H-ZBAF20 |
| 173 | ML-173 | 103.98 | 32.0 | 6.2 (±0.1) | QK3 |
| 174 | ML-174 | 105.60 | 16.0 | 3.7 (±0.05) | K2 |
| 175 | ML-175 | 105.81 | 21.0 | 2.6 (±0.05) | QK3 |
| 176 | ML-176 | 105.81 | 17.5 | 2.6 (±0.05) | QK3 |
| 177 | ML-177 | 114.31 | 18.7 | 2.5 (±0.1) | H-ZK14 |
| 178 | ML-178 | 115.33 | 16.0 | 2.5 (±0.1) | K10 |
| 179 | ML-179 | 116.29 | 16.0 | 2.5 (±0.1) | K10 |
| 180 | ML-180 | 124.98 | 11.0 | 1.2 (±0.05) | H-ZBaF5 |
| 181 | ML-181 | 135.90 | 49.0 | 7.0 (±0.1) | K9 |
| 182 | ML-182 | 137.40 | 40.0 | 5.0 (±0.1) | LAF3 |
| 183 | ML-183 | 152.01 | 23.0 | 3.3 (±0.05) | K9 |
| 184 | ML-184 | 204.79 | 24.0 | 3.6 (±0.1) | ZF1 |
| 185 | ML-185 | 422.75 | 47.0 | 6.2 (±0.05) | K9 |
